Product Advantages 3-Machine Set 18V Li-Ion MAKITA DLX3178PTJ 5 Ah (DHP486+DGA506+DHS680)

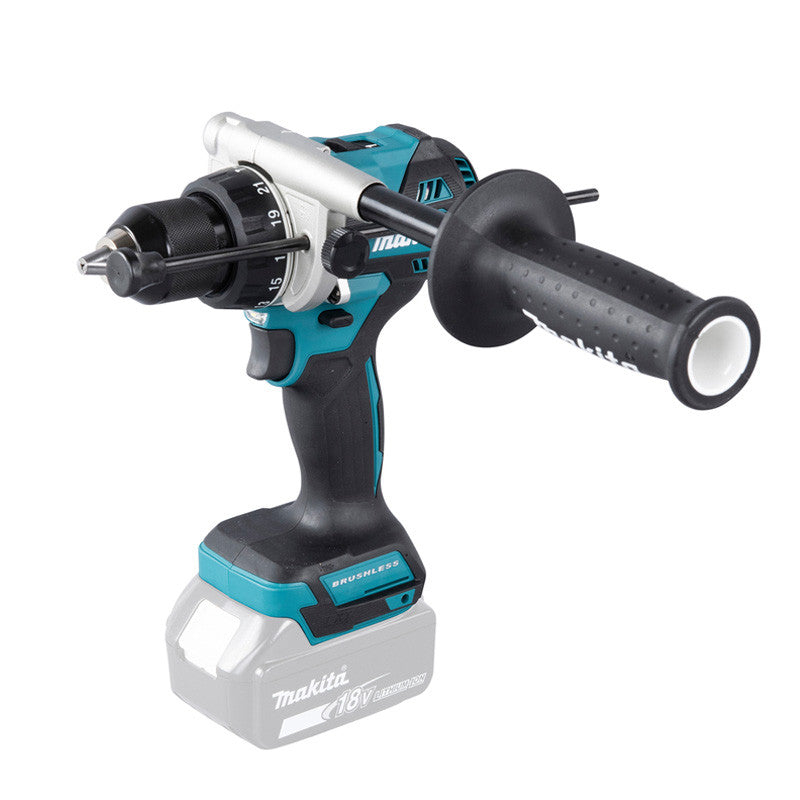

DHP486 - Percussion Drill/Driver Ø 13 mm
Drill/driver designed for demanding intensive use
Highly efficient and compact machine for professional use
Percussion drill/driver, 2 speeds, reinforced aluminum housing, percussion up to 31,500 cpm in masonry materials
Self-tightening Ø 13 mm chuck
Torque adjustment 21 positions + drilling
Protection against dust and water infiltration (XPT)
Electronic brake
Compact: 178 mm long
Optimal grip design
LED light to illuminate the work area
Battery protection system automatically cuts power when battery level is low

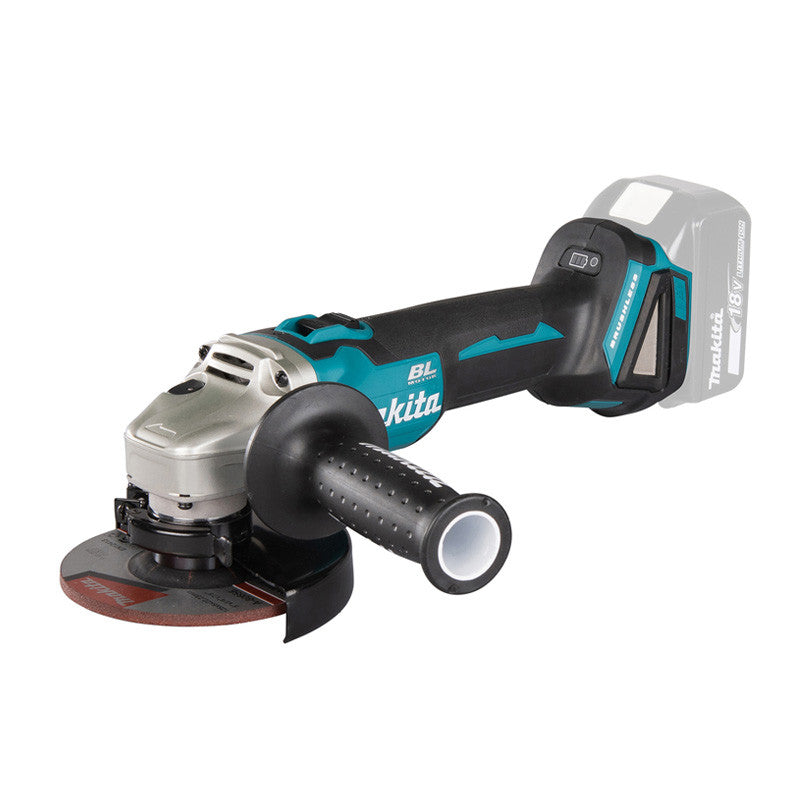

DGA506 - Grinder Ø 125 mm
125 mm battery-powered grinder, powerful, high-performing and easy to handle
Anti kick-back protection: the motor goes into safety mode if it detects a sudden drop in speed
Electronic brake and anti-restart system for added safety
Automatic speed control based on applied load ensuring optimal grinding
Brushless motor: Powerful, High-performing, Compact and Lightweight

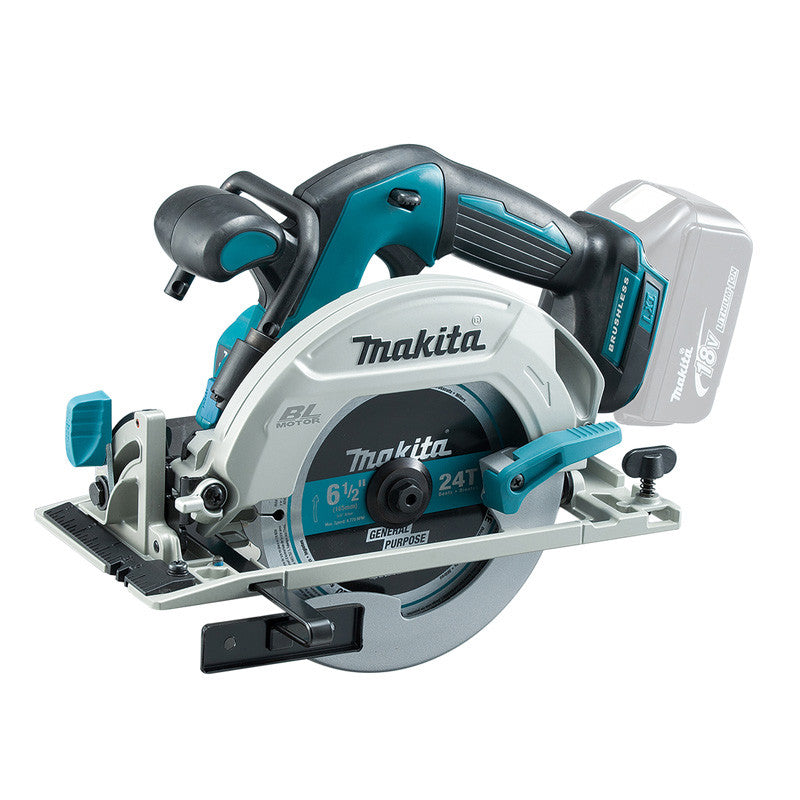

DHS680 - Circular Saw Ø 165 mm
Brushless saw, ideal even in very hard woods thanks to its controller which adapts torque to conditions
Automatic speed control based on applied load ensuring optimal cutting
Soft start ensuring smooth machine start-up for added safety
Safety button to prevent accidental trigger activation
LED light to illuminate the work area
Equipped with an electronic brake for added safety
Battery protection system automatically cuts power when battery level is low
Safety switch prevents accidental tool start-up
Rubber grip coating ensures good grip
Removable dust extraction port
Technical Specifications 3-Machine Set 18V Li-Ion MAKITA DLX3178PTJ 5 Ah (DHP486+DGA506+DHS680)
DHP486 - Percussion Drill/Driver Ø 13 mm
Power: 18 V
LXT Voltage
BL Motor
Max no-load speed: 0 - 550 / 2100 min⁻¹
Max torque fixed/elastic: 130 / 65 Nm
Torque adjustment: 21
Impacts per minute (IPM): 0 - 8250 / 31500 min⁻¹
Max wood drilling Ø: 76 mm
Max masonry drilling Ø: 16 mm
Max steel drilling Ø: 13 mm
Drive shaft: 1/2"-20UNF
Chuck capacity: 1.5 - 13 mm
Sound power level (l wa): 95 dB(A)
Sound pressure level (L pa): 84 dB(A)
Noise uncertainty (factor K): 3 dB(A)
Vibration level (3 axes), drilling: ≤ 2.5 m/s²
Vibration level (3 axes), impact drilling: 8.0 m/s²
Vibration uncertainty (factor K): 1.5 m/s²
Tool weight with battery: 2.3 - 2.7 kg
Product dimensions (L x W x H): 178 x 81 x 265 mm
Battery component: Li-ion
Electronic brake
Net product weight: 1.7 kg
DGA506 - Grinder Ø 125 mm
Power: 18 V
LXT Voltage
BL Motor
Max no-load speed: 8500 min⁻¹
Max cutting depth: 29 mm
Spindle thread: M14
Support (shaft diameter): 22.23 mm
Disc diameter: 125 mm
Anti-restart function (NVR)
Electronic brake
Sound power level (l wa): 90 dB(A)
Sound pressure level (L pa): 82 dB(A)
Noise uncertainty (factor K): 3 dB(A)
Tool weight with battery: 2.3 - 2.6 kg
Vibration level, disc sanding: ≤ 2.5 m/s²
Product dimensions (L x W x H): 362 x 140 x 151 mm
Vibration level, surface grinding: 6.5 m/s²
Vibration factor k, disc sanding: 1.5 m/s²
Vibration factor k, surface grinding: 1.5 m/s²
Battery component: Li-ion
Maximum output power: 660 W
DHS680 - Circular Saw Ø 165 mm
Power 18 V
LXT Voltage
Max cutting depth at 90°: 57 mm
Max cutting depth at 45°: 41 mm
Max cutting depth at 50°: 37 mm
Bevel range (left): 0 / 50°
Max no-load speed: 5000 min⁻¹
Sound power level (l wa): 105 dB(A)
Sound pressure level (L pa): 94 dB(A)
Noise uncertainty (factor K): 3 dB(A)
Vibration level (3 axes): ≤ 2.5 m/s²
Vibration uncertainty (factor K): 1.5 m/s²
Tool weight with battery: 3.0 - 3.3 kg
Product dimensions (L x W x H): 350 x 170 x 238 mm
BL Motor
Battery component: Li-ion
Maximum output power: 680 W
Capacity 45°: 41 mm
Blade diameter: 165 mm
Support (shaft diameter): 20 mm
Internal/External Ø: 35/40 mm

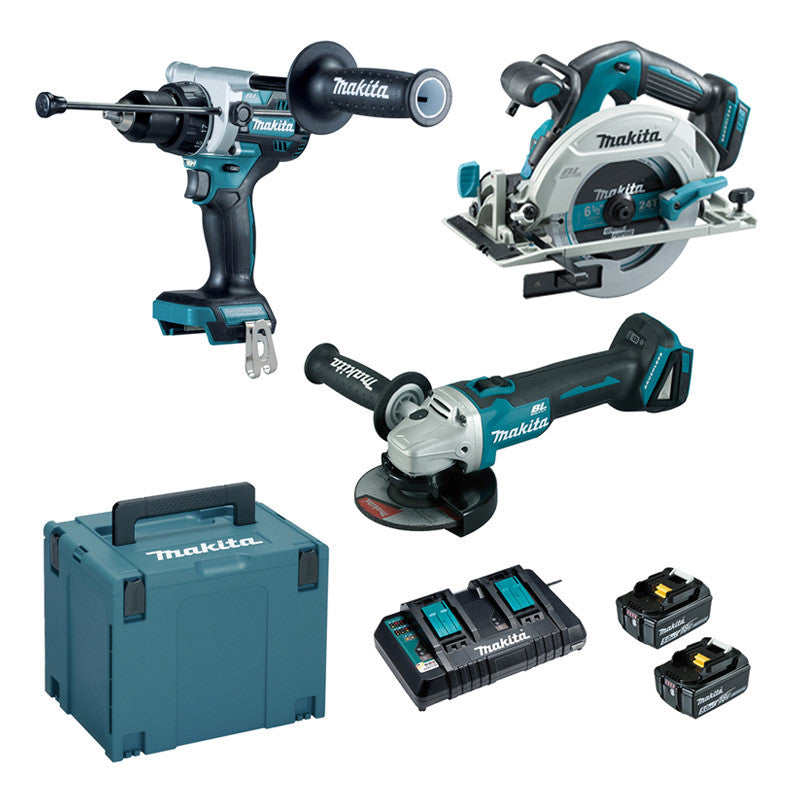

Set Composition
125 mm Grinder LXT® DGA506Z
Percussion Drill/Driver LXT® DHP486Z
Circular Saw LXT® DHS680Z
MAKPAC case 821552-6 (2x)
Transport case and insert 838397-5
INSERT DLX2277PTJ 839694-2
DC18RD - Rapid charger 2 Makstar Li-Ion batteries 14.4 to 18V 196933-6
Makstar Li-Ion 18V / 5 Ah Battery - BL1850B (integrated charge indicator) 197280-8 (2x)
