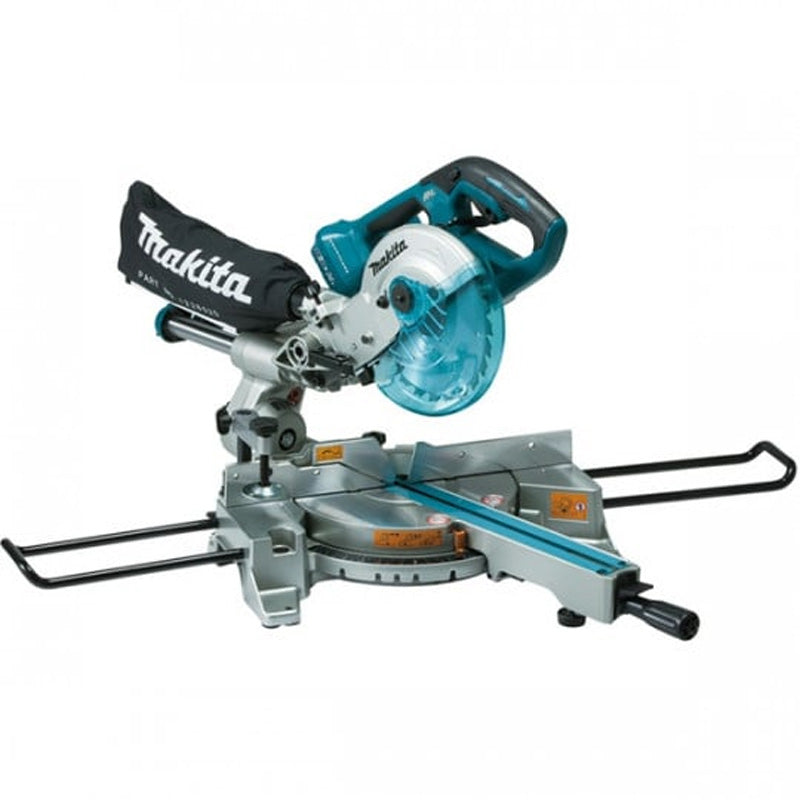

Advantages of the MAKITA DLS714NZ 36V LXT® 190 mm radial saw, sold separately
The Makita DLS714NZ radial saw combines the power of a corded saw with the mobility of a cordless tool. Powered by two 18V Li-Ion batteries (not included), it offers automatic speed control depending on the load applied for optimal sawing. Soft start, electric brake, and anti-restart button ensure maximum safety. Its dual telescopic guide and ball bearing mount ensure precision and robustness, while the Soft Grip ergonomics provide a comfortable grip. Cutting angle adjustments are quick and easy thanks to the accessible presets.
Features Radial arm saw Ø 190 mm 36V LXT ® MAKITA DLS714NZ product only
This 36 V (2 x 18 V) radial arm saw works with compatible BL1815N, BL1830, BL1840, or BL1850 batteries. It uses a 190 mm diameter blade with a 20 mm bore, offering a maximum no-load speed of 5600 rpm.
The cutting capacity is 52 x 300 mm at 90°/0° and 52 x 212 mm at 90°/45°, with a cutting height at 45° of 40 x 212 mm. The bevel angle is 5° to the left and 45° to the right, and the miter pivot is 57° to the left and 47° to the right. The dimensions are 655 x 430 x 445 mm with a net weight of 13.7 kg.
Included accessories
The product includes a 5 mm hex key, an adjustment square, a clamp, a 190 x 20 mm 24-tooth carbide wood blade, a dust bag, and two service tools.
Additional information
This Makita DLS714NZ radial saw is distributed by Master Outillage and comes with the official Makita France warranty. It offers robustness, precision, and safety for professionals who want a powerful and mobile tool, even without batteries included.
