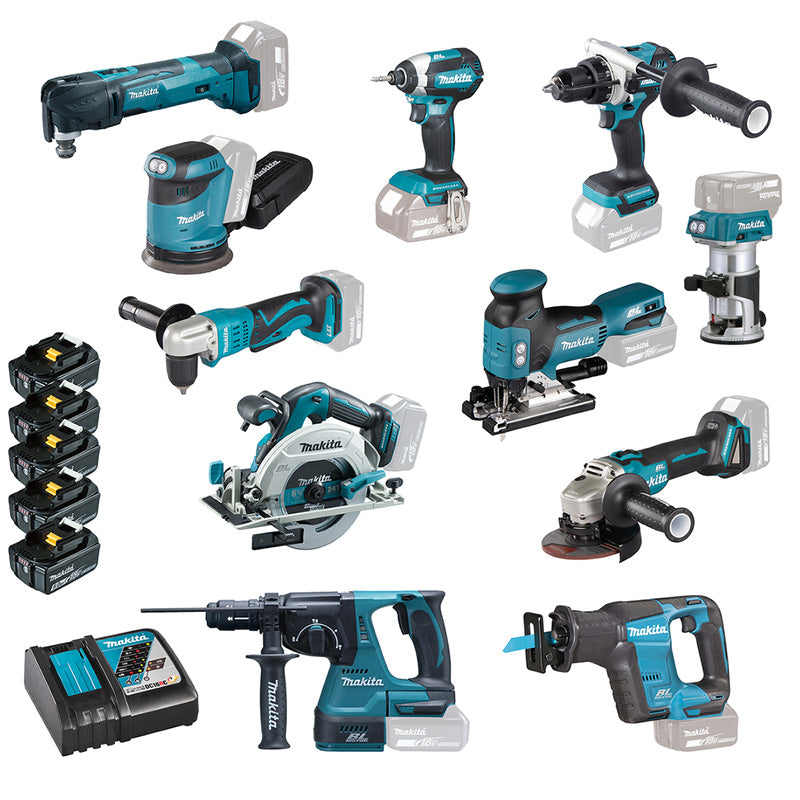

11-Tool Pack with Batteries, Chargers and MakPacs: DGA506 + DHS680 + DTD153 + DHP486 + DHR243 + DJR188 + DDA351 + DBO180 + DTM51ZJX2 + DRT50ZJX3 + DJV181 + 5x BL1850 + 2x DC18RC + MakPacs

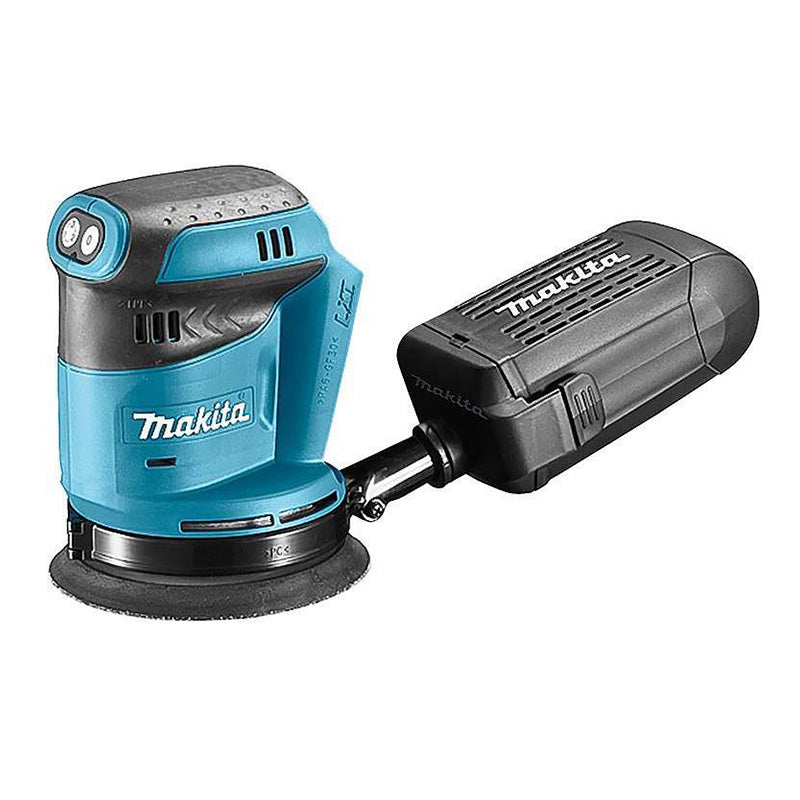

Product Advantages Orbital Sander LXT® DBO180
Maneuverable sander with 125 mm paper diameter
Effective suction and compact, ergonomic design for optimal user comfort
Battery protection system automatically cuts power when battery level is low
Technical Specifications Orbital Sander LXT® DBO180
Battery nominal voltage: 18 V
LXT Voltage
Eccentric strokes per minute: 7,000 - 11,000 min⁻¹
Sanding disc diameter: 125mm
Sanding result: 2.8 mm
Sound pressure level (L pA): 77 dB(A)
Noise uncertainty (factor K): 3dB(A)
Vibration level (3 axes): 2.5 m/s²
Vibration uncertainty (factor K): 1.5 m/s²
Tool weight with battery: 1.4 - 1.7 kg
Product dimensions (L x W x H): 175x123x153 mm
Sanding pad diameter: 123 mm
Net product weight: 1.1 kg
Vacuum connector inlet/outlet diameter: 25/31 mm

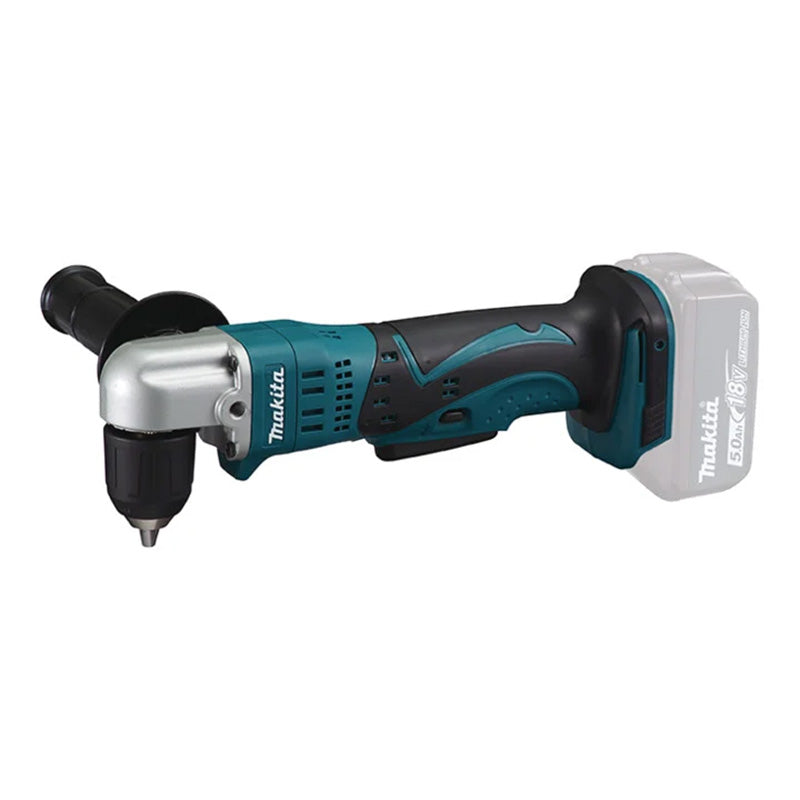

Product Advantages Right-Angle Drill LXT® DDA351
Right-angle drill with 8 mm head height for use in restricted spaces
Self-locking chuck 1.5 to 10 mm
Battery protection system automatically cuts power when battery level is low
LED light illuminating the work area
Technical Specifications Right-Angle Drill LXT® DDA351
Nominal voltage: 18 V
LXT Voltage
Max no-load speed: 0 - 1800 min-¹
Max torque fixed/elastic: - / 13.5 Nm
Max drilling Ø in wood: 25 mm
Max drilling Ø in steel: 10 mm
Drive shaft: 24UNF / 3/8"
Chuck capacity: 1.5 - 10 mm
Sound pressure level (Lpa): 70 dB(A)
Noise uncertainty (factor K): 3 dB(A)
Vibration level (3 axes), drilling: ≤ 2.5 m/s²
Vibration uncertainty (factor K): 1.5 m/s²
Tool weight with battery (EPTA): 1.6 - 1.9 kg
Product dimensions (L x W x H): 326 x 79 x 115 mm
Angle length: 88 mm
Max torque (2nd/1st speed): - / 13.5 Nm
Drilling capacity (bit): 50 mm

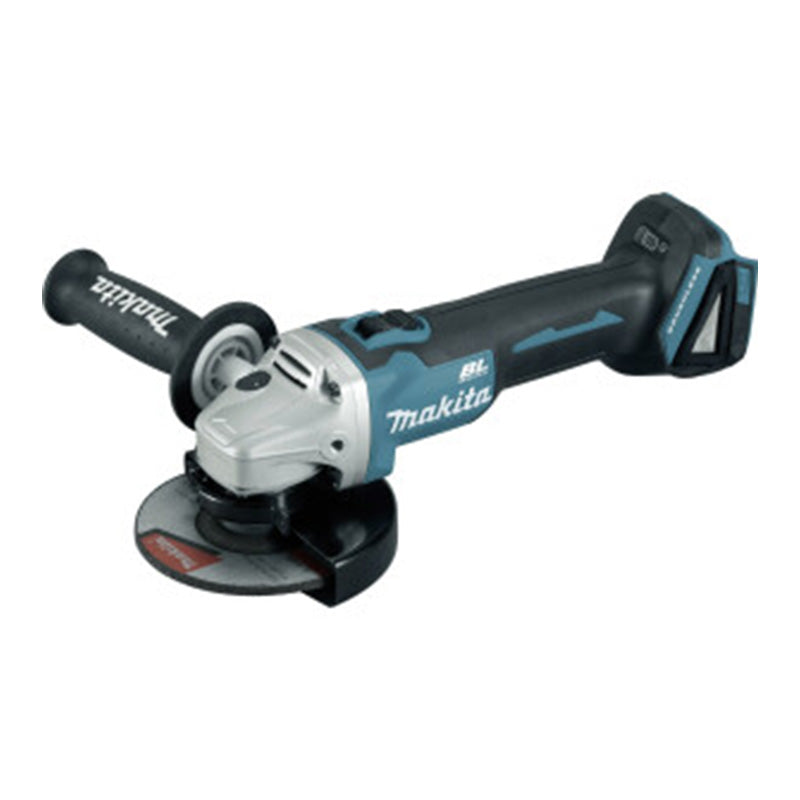

Product Advantages Grinder Ø125mm LXT® DGA506
125 mm battery-powered grinder, powerful, high-performing and maneuverable
With anti kick-back protection: the motor goes into safety mode if it detects a sudden drop in speed
Equipped with electronic brake and anti-restart system for added safety
Automatic speed control based on applied load ensuring optimal grinding
Brushless motor powerful, high-performing, compact, lightweight, maintenance-free and long-lasting
Technical Specifications Grinder Ø125mm LXT® DGA506
Nominal voltage: 18 V
LXT Voltage
BL Motor
Max no-load speed: 8500 min-¹
Max cutting depth: 29 mm
Spindle thread: M14
Support (shaft diameter): 22.23 mm
Grinding disc diameter: 125 mm
Anti-restart function (NVR)
Electronic brake
Sound power level (lwa): 90 dB(A)
Sound pressure level (Lpa): 82 dB(A)
Noise uncertainty (factor K): 3 dB(A)
Vibration level (3 axes): 6.5 m/s²
Vibration uncertainty (factor K): 1.5 m/s²
Tool weight with battery (EPTA): 2.3 - 2.6 kg

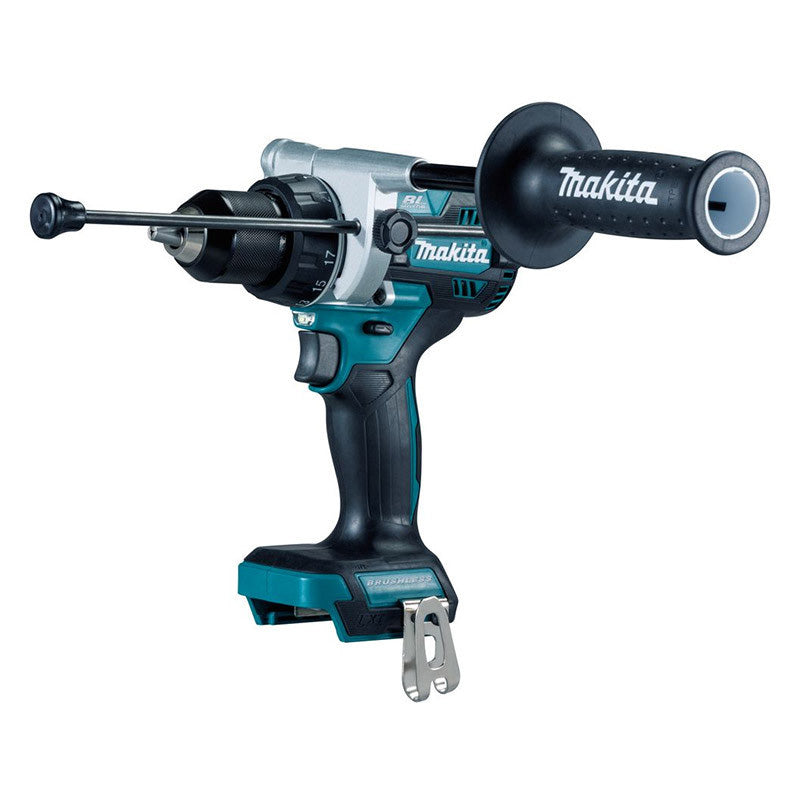

Product Advantages Percussion Drill/Driver LXT® DHP486
18V cordless percussion drill/driver with powerful brushless motor
Ability to activate impact mechanism according to application
With metal chuck, side handle and dual LED light with pre-luminescence and post-luminescence function
Equipped with LED light to illuminate the work area
Highly efficient and compact machine for professional use
Battery protection system automatically cuts power when battery level is low
Overload electronic protection protects the user and the device
Technical Specifications Percussion Drill/Driver LXT® DHP486
Nominal voltage: 18 V
LXT Voltage
BL Motor
Max no-load speed: 0 - 550 / 2100 min-¹
Max torque fixed/elastic: 130 / 65 Nm
Torque adjustment settings: 21
Impacts per minute (IPM): 0 - 8250 / 31500 min-¹
Max wood drilling Ø: 76 mm
Max masonry drilling Ø: 16 mm
Max steel drilling Ø: 13 mm
Drive shaft: 1/2"-20UNF
Chuck capacity: 1.5 - 13 mm
Sound power level (lwa): 95 dB(A)
Sound pressure level (Lpa): 84 dB(A)
Noise uncertainty (factor K): 3 dB(A)

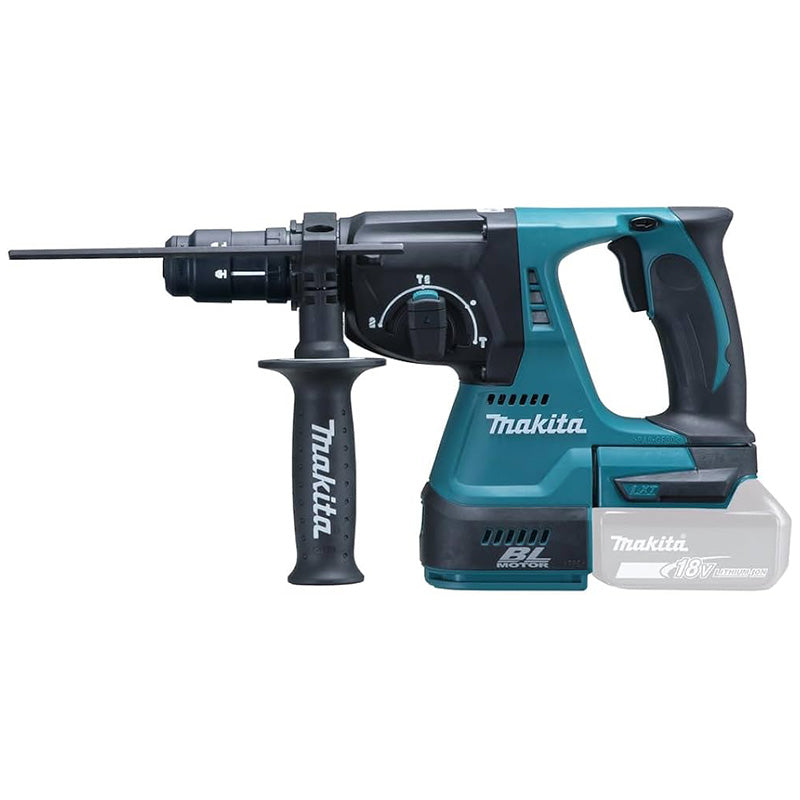

Product Advantages Hammer Drill LXT® DHR243
Efficient hammer drill equipped with anti-vibration handle, quick-locking chuck and suitable for SDS-Plus bits
Percussion drilling without stress and chiseling
Has variable speed: 0 to 950 rpm
Battery protection circuit protects against overcharge, excessive discharge and overheating
Technical Specifications Hammer Drill LXT® DHR243
Nominal voltage: 18 V
LXT Voltage
BL Motor
Impact energy: 2.0 J
Optimal drilling diameter in concrete: 6 - 12 mm
Max concrete drilling Ø: 24 mm
Max wood drilling Ø: 27 mm
Max steel drilling Ø: 13 mm
Impacts per minute (IPM): 0 - 4700 min-¹
Max no-load speed: 0 - 950 min-¹
Sound power level (lwa): 100 dB(A)
Sound pressure level (Lpa): 89 dB(A)
Noise uncertainty (factor K): 3 dB(A)
Vibration level (3 axes), drilling: 2.5 m/s²

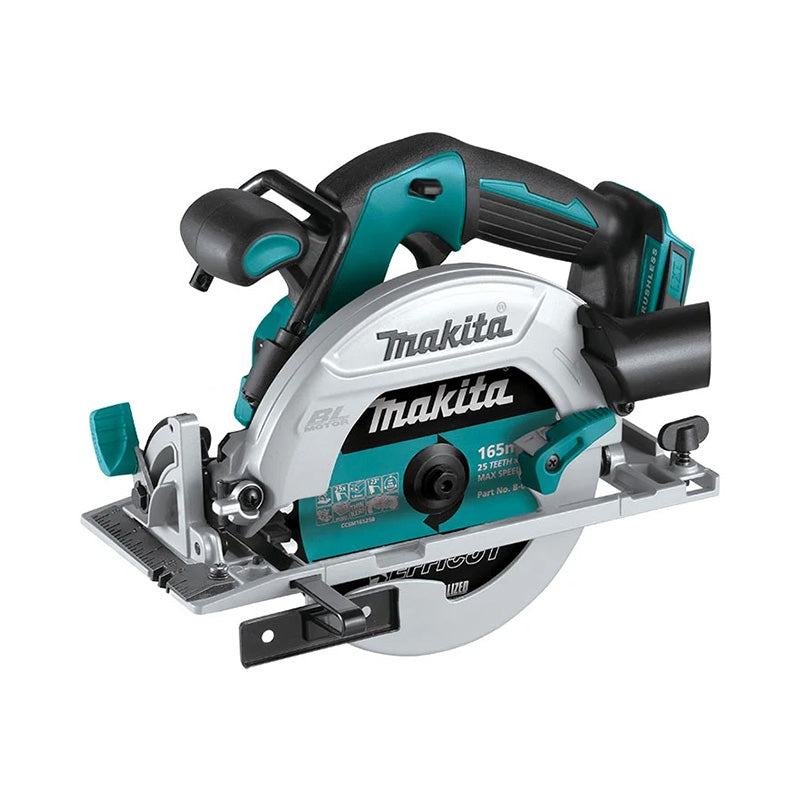

Product Advantages Circular Saw LXT® DHS680
Brushless motor
Automatic speed control based on applied load ensuring optimal cutting
Soft start ensuring progressive start ensuring smooth start-up for added safety
Safety button to prevent accidental trigger activation
Equipped with electronic brake for added safety
LED light illuminating the work area
Battery protection system automatically cuts power when battery level is low
Rubber grip coating ensures good grip
Removable dust extraction port
Technical Specifications Circular Saw LXT® DHS680
Nominal voltage: 18 V
LXT Voltage
Max cutting depth at 90°: 57 mm
Max cutting depth at 45°: 41 mm
Max cutting depth at 50°: 37 mm
Bevel range (left): 0 / 50°
Max no-load speed: 5000 min-¹
Sound power level (lwa): 105 dB(A)
Sound pressure level (Lpa): 94 dB(A)
Noise uncertainty (factor K): 3 dB(A)
Vibration level (3 axes): ≤ 2.5 m/s²
Vibration uncertainty (factor K): 1.5 m/s²
Tool weight with battery (EPTA): 3.0 - 3.3 kg
Product dimensions (L x W x H): 350 x 170 x 238 mm
BL Motor

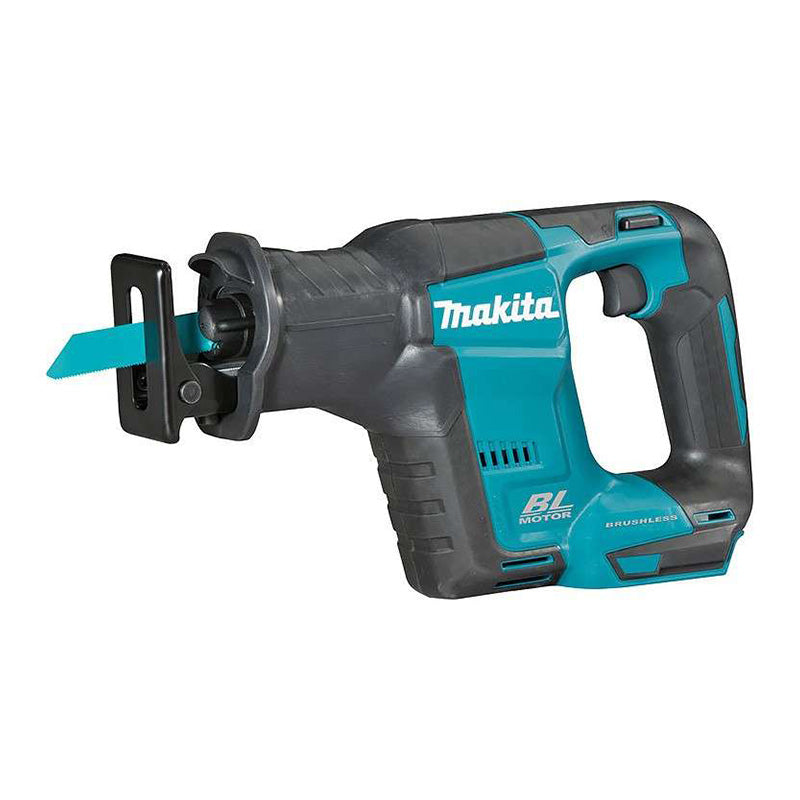

Product Advantages Reciprocating Saw LXT® DJR188
Compact and efficient brushless reciprocating saw with short frame for spark-free metal cutting and demolition work
Brushless motor maintenance-free and long-lasting
LED light illuminating the work area
Battery protection system automatically cuts power when battery level is low
Technical Specifications Reciprocating Saw LXT® DJR188
Nominal voltage: 18 V
LXT Voltage
BL Motor
Strokes per minute (SPM): 0 - 3000 min-¹
Stroke length: 20 mm
Max cutting capacity in wood (90°): 255 mm
Max cutting capacity in steel tube: 130 mm
Sound power level (lwa): 94 dB(A)
Sound pressure level (Lpa): 83 dB(A)
Noise uncertainty (factor K): 3 dB(A)
Vibration level (3 axes): 15.5 m/s²
Vibration uncertainty (factor K): 1.5 m/s²
Tool weight with battery (EPTA): 2.6 - 2.9 kg
Product dimensions (L x W x H): 316 x 81 x 220 mm
Vibration level (3 axes), cutting: 15.5 m/s²

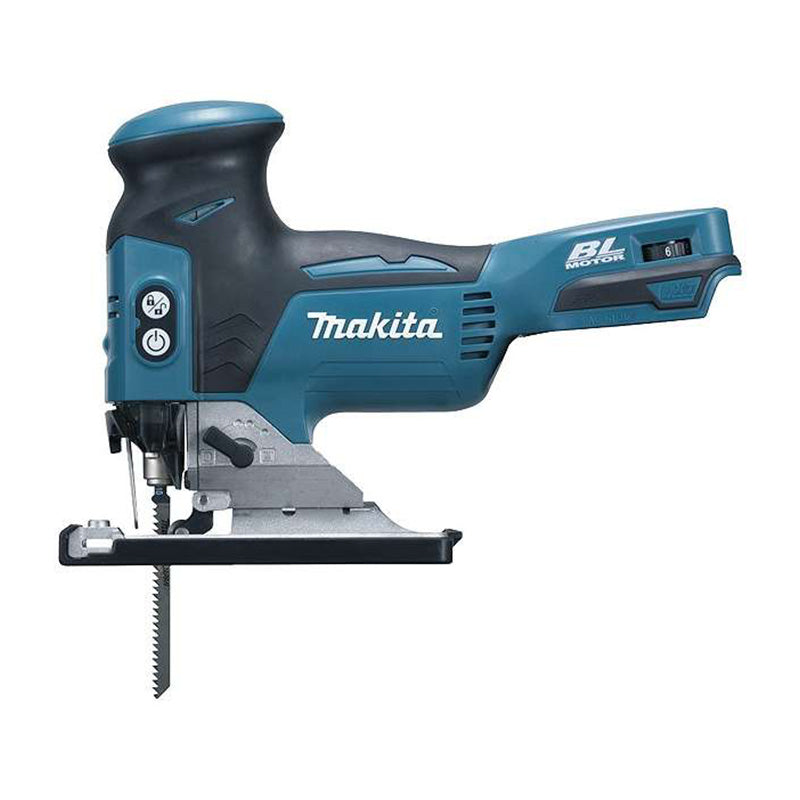

Product Advantages Jigsaw LXT® DJV181
Efficient tool whose blade, removable without tools, performs a three-stage pendulum motion
Equipped with a wheel allowing motor speed adjustment between 800 and 3500 rpm to adapt to the material being worked
LED light illuminating the work area
Smooth speed without load
Battery protection circuit protects against overcharge, excessive discharge and overheating
Technical Specifications Jigsaw LXT® DJV181
LXT Voltage
Nominal voltage: 18 V
BL Motor
Strokes per minute (SPM): 800 - 3500 min-¹
Stroke length: 26 mm
Max cutting capacity in wood (90°): 135 mm
Max steel cutting capacity (90°): 10 mm
Aluminum capacity: 20 mm
Rotary action
Sound pressure level (Lpa): 78 dB(A)
Noise uncertainty (factor K): 3 dB(A)
Vibration level (3 axes), cutting chipboard panels: 6.5 m/s²
Vibration level (3 axes), sheet metal cutting: 5.0 m/s²
Vibration uncertainty (factor K): 1.5 m/s²
Tool weight with battery (EPTA): 2.3 - 2.6 kg

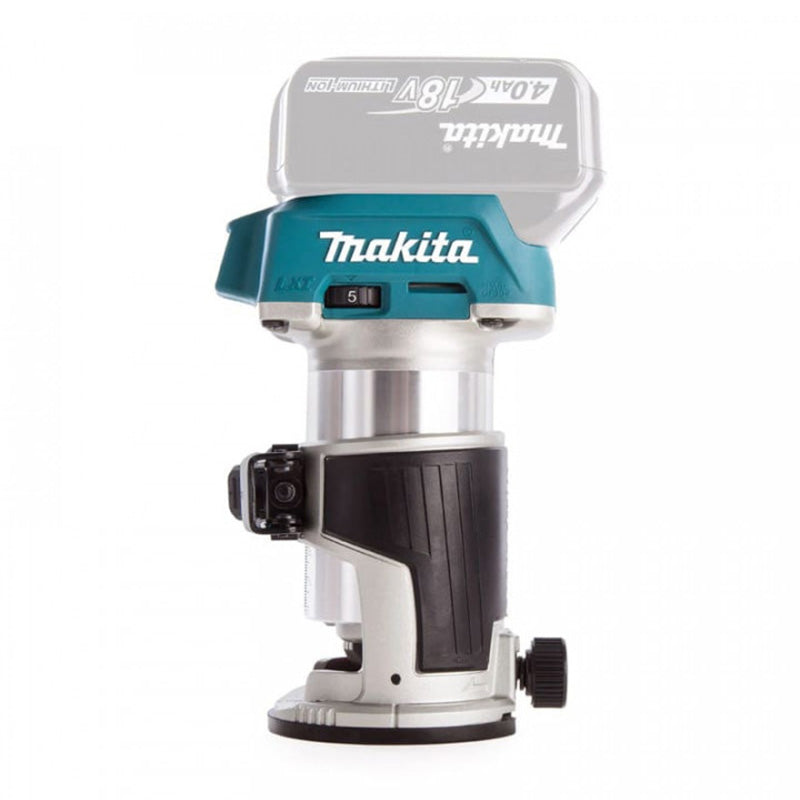

Product Advantages Flush Router LXT® DRT50
Practical and lightweight flush router, ideal for professional or amateur woodworking
Allows making grooves or moldings in wood
LED lighting
Battery protection system automatically cuts power when battery level is low
Technical Specifications Flush Router LXT® DRT50
BL Motor
Nominal voltage: 18 V
LXT Voltage
Max no-load speed 10000 - 30000 min-¹
Plunge capacity: 0 - 40 mm
Plunge depth (router base): 0 - 35 mm
Plunge depth (flush router base): 0 - 40 mm
Max collet capacity: 6 / 8 mm
Sound pressure level (Lpa): 78 dB(A)
Noise uncertainty (factor K): 3 dB(A)
Vibration level (3 axes): ≤ 2.5 m/s²
Vibration uncertainty (factor K): 1.5 m/s²
Tool weight with battery (EPTA): 1.8 - 2.1 kg
Product dimensions (L x W x H): 134 x 89 x 226 mm
Battery component: Li-ion

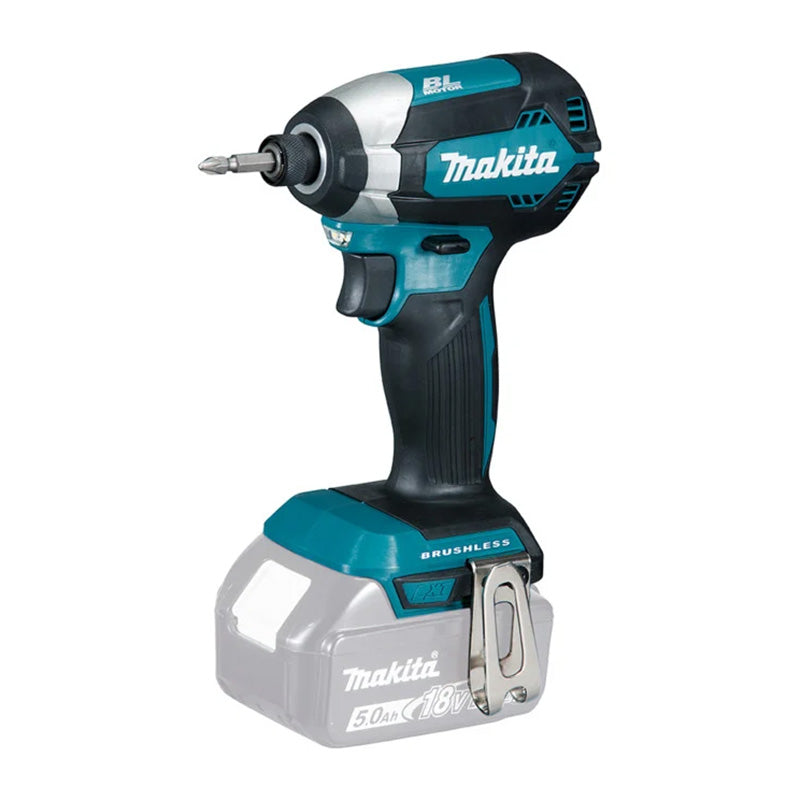

Product Advantages Impact Driver LXT® DTD153
Compact and lightweight brushless impact driver with 1/4" hexagonal socket
Ideal for fast screwing, lightweight and easy to use
Battery protection system automatically cuts power when battery level is low
LED light illuminating the work area
Technical Specifications Impact Driver LXT® DTD153
Nominal voltage: 18 V
LXT Voltage
BL Motor
Max no-load speed: 0 - 3400 min-¹
Max clamping torque (fixed): 170 Nm
Standard bolt clamping capacity: M5 - M16
Impacts per minute (IPM): 0 - 3600 min-¹
Sound power level (lwa): 107 dB(A)
Sound pressure level (Lpa): 96 dB(A)
Noise uncertainty (factor K): 3 dB(A)
Vibration level (3 axes), fixing bolt: 13.0 m/s²
Vibration uncertainty (factor K): 1.5 m/s²
Tool weight with battery (EPTA): 1.3 - 1.6 kg
Product dimensions (L x W x H): 126 x 79 x 238 mm

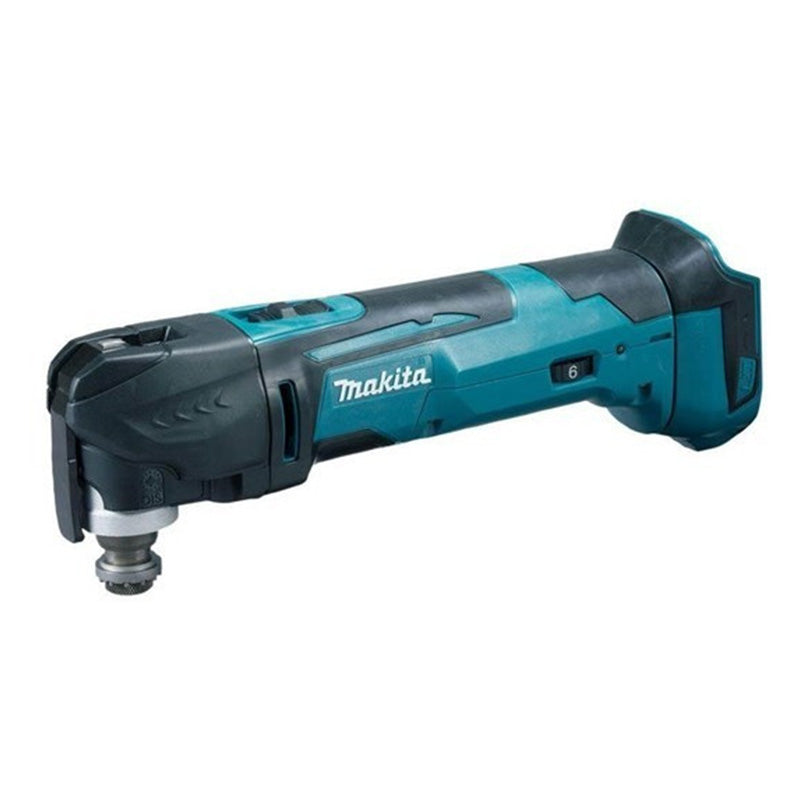

Product Advantages Multi-Tool LXT® DTM51ZJX2
18V tool for various grinding and polishing applications in construction and renovation projects
Rubber coating on handle ensuring firm grip
Battery protection system automatically cuts power when battery level is low
Technical Specifications Multi-Tool LXT® DTM51ZJX2
Battery nominal voltage: 18 V
LXT Voltage
Eccentric strokes per minute: 6,000 to 20,000 min⁻¹
Oscillation angle: 2 x 1.6°
Soleplate dimensions (triangle): 93x93x93mm
Sound pressure level (LpA): 81 dB(A)
Noise uncertainty (factor K): 3dB(A)
Vibration level (3 axes): 7.0 m/s²
Vibration level (3 axes), chipboard panel cutting: 4.5 m/s²
Vibration level (3 axes), sanding: 3.0 m/s²
Vibration uncertainty (factor K): 1.5 m/s²
Tool weight with battery: 2.0 - 2.4 kg
Product dimensions (L x W x H): 340x80x122 mm
Sound power level (LWA): 92 dB(A)
Battery chemistry: Li-ion
Accessories

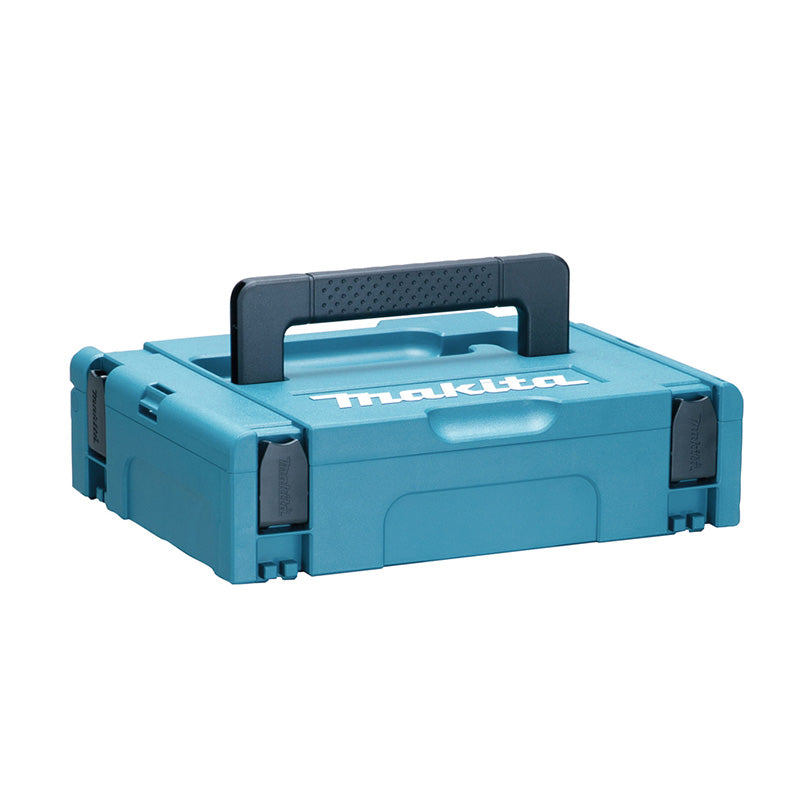

1 MAKPAC Case I 821549-5

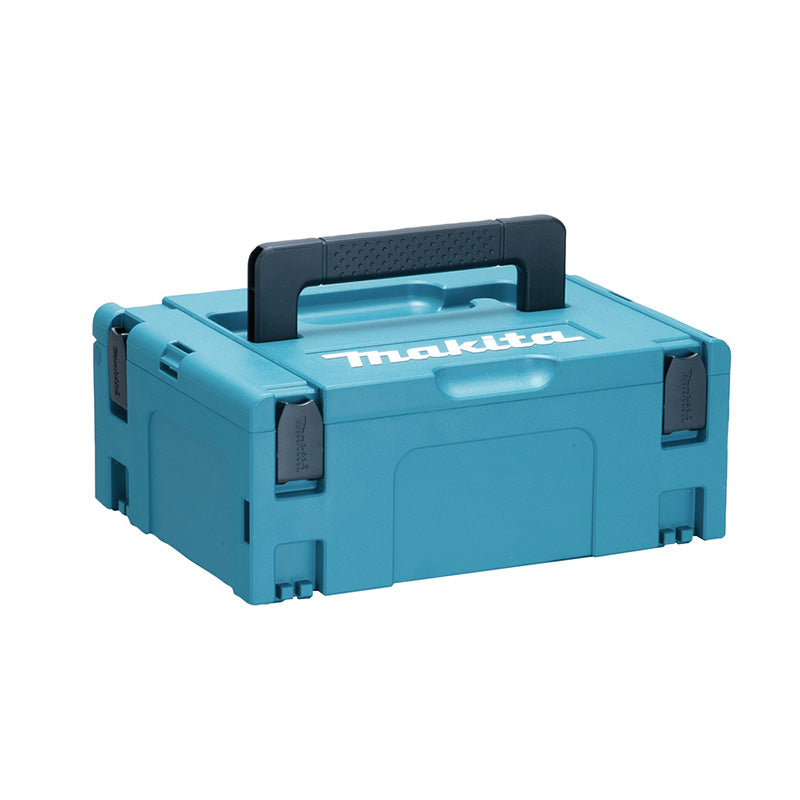

2 MAKPAC Cases II 821550-0

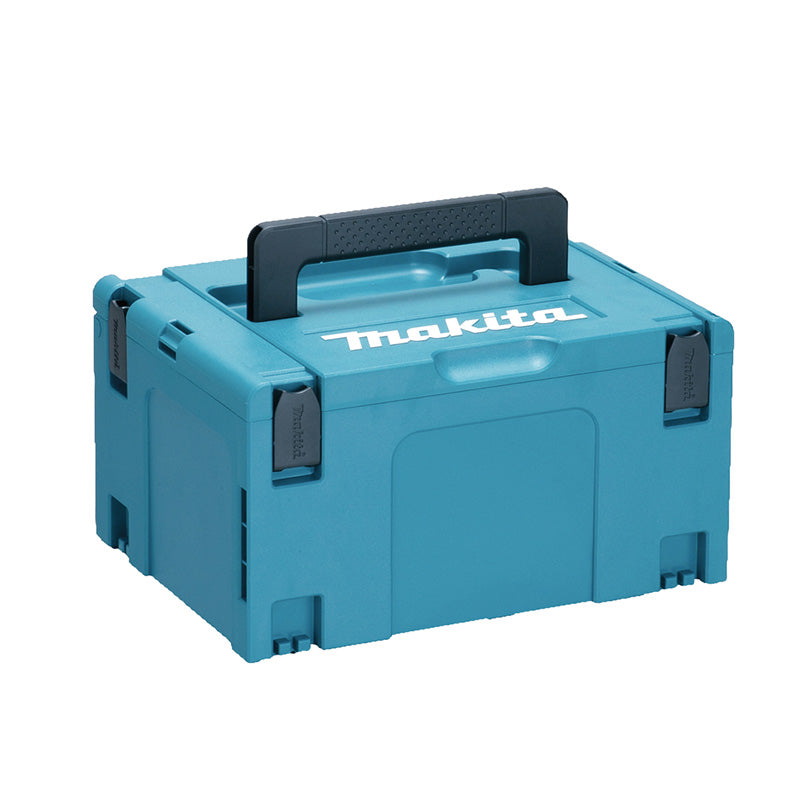

5 MAKPAC Cases III 821551-8

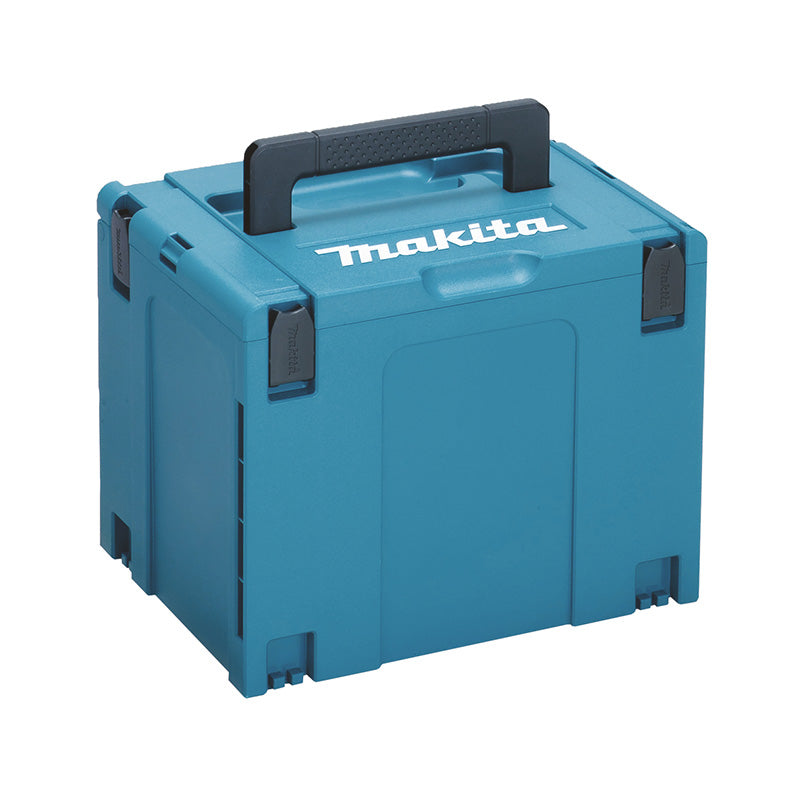

2 MAKPAC Cases IV 821552-6

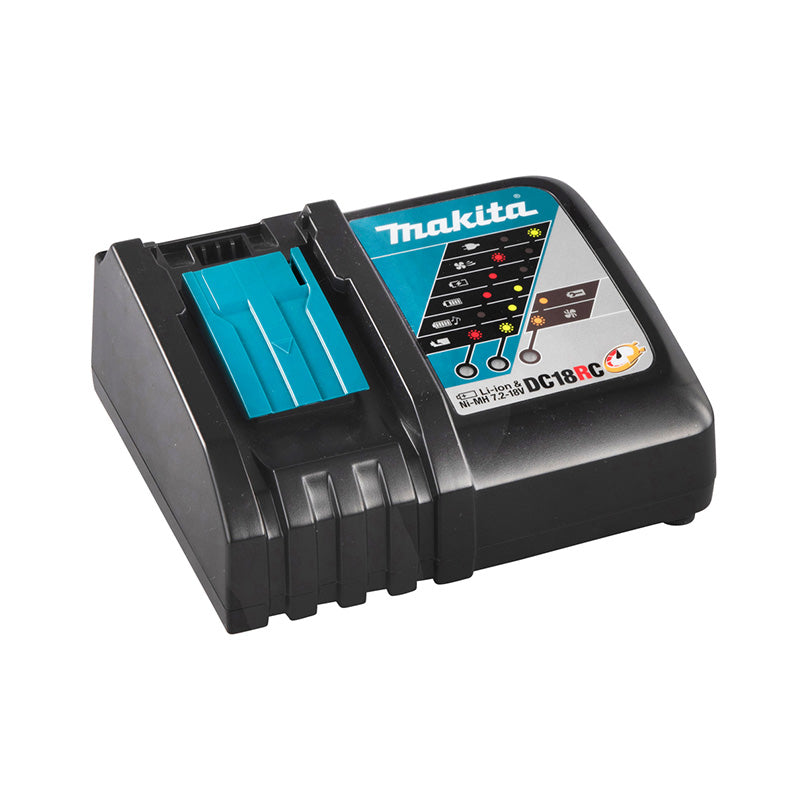

2 DC18RC Chargers

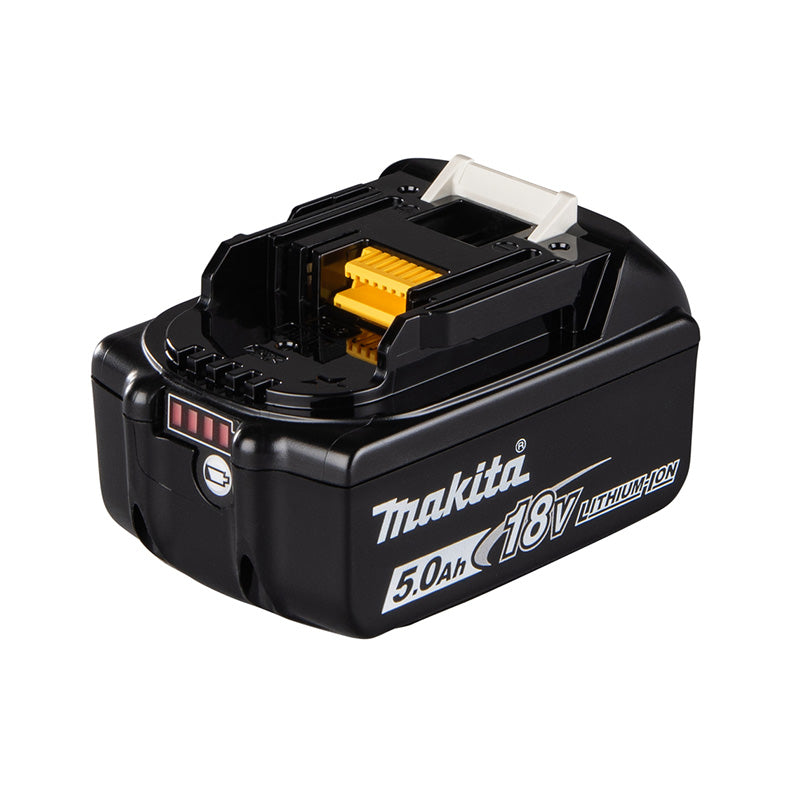

5 BL1850 Batteries
